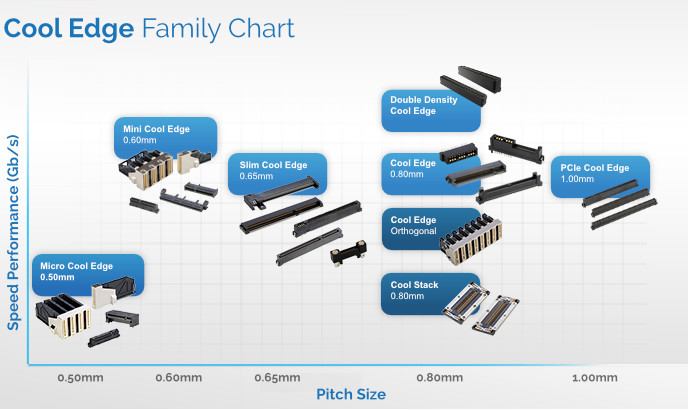

Cool Edge Connectors Family Chart

Cool Edge Connectors

Amphenol ICC's Cool Edge Connectors are a high-speed and high-power card edge connector system that supports most BTB applications in the electronics market. These versatile solutions address multiple standards such as PCIe, SAS, SATA, Gen 4/5, OCP 3.0, EDSFF, NGSFF/NF1, and Gen Z, and offer multiple BTB configurations such as mezzanine, coplanar, midplane, and backplane. Moreover, the connectors are designed as Open Pin Field and are hot plug capable. Cool Edge is ideal for applications such as solid-state drive (SSD), NVMe SSD, enterprise data center, Network Interface Card, and Add-In Card.

Select Your Cool Edge Connector Now!

xxxx

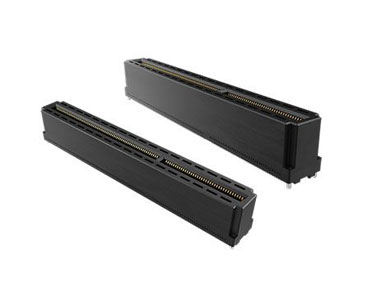

Double Density Cool Edge 0.80 mm

Amphenol’s 0.80 mm pitch double density cool edge connectors offer a compact design with two rows of contacts.

View Details

xxxx

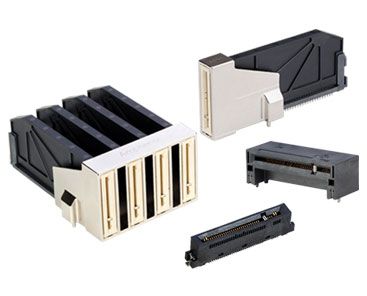

Micro Cool Edge 0.50mm

Amphenol ICC’s Micro Cool Edge NF1/NGSFF 0.50 mm is a small form factor card edge connector

View Details

xxxx

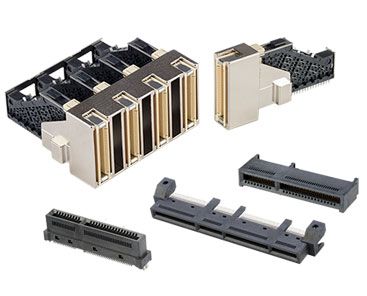

Mini Cool Edge 0.60mm

Amphenol ICC’s Mini Cool Edge connectors for right angle, mezzanine/coplanar, and support cable interconnect board-to-board applications

View Details

xxxx

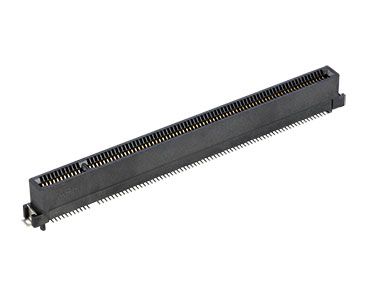

PCIe Cool Edge 1.00mm

Amphenol's Cool Edge 1.00 mm PCIe connectors' conductive plastic design provides enhanced signal integrity

View Details

xxxx

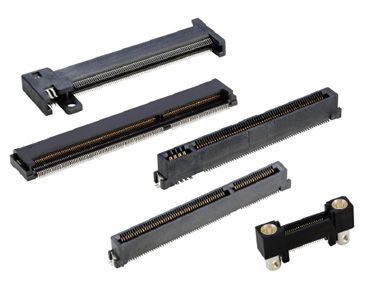

Slim Cool Edge 0.65mm

Amphenol ICC’s connectors are designed as open pin field and are hot plug capable

View Details

xxxx

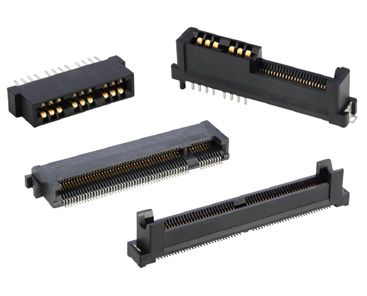

Standard Cool Edge 0.80mm

Amphenol ICC’s Hybrid connectors for versatile board-to-board applications

View Details
